Lifos Go 12Ah Lithium Iron Phosphate Battery

The Lifos Go 12A is ideal for mobility scooters, golf carts, alarm systems and any application that requires a high cycling battery where savings can be made by reducing the number of service visits required to change a shorter life cycle lead acid battery. Lifos Go 12 delivers up to 2000 operating cycles and comes with a two year warranty.

Buy Lifos Go batteries

Product Overview

The Lifos Go 12A is ideal for mobility scooters, golf carts, alarm systems and any application that requires a high cycling battery where savings can be made by reducing the number of service visits required to change a shorter life cycle lead acid battery.

Lifos Go 12 provides a super long 2000 operating cycles at 70% depth of discharge (DOD) rising to an impressive 3000 cycles if discharged to 50% (that more than eight years of trouble free performance). At 70% DOD, the Lifos Go 12 provides a usable power of 8.4Ah, which means it gives the same usable power as a 17Ah lead acid battery but in a compact size, around one and half times smaller. Weight too is much reduced. Lifos Go 12 is 1.5kgs compared to 5kgs for a lead acid equivalent.

Two batteries can be connected together in series or parallel.

Lifos Go 12 comes with a two year warranty.


Please Note - Lifos Go 12 does not have the App function

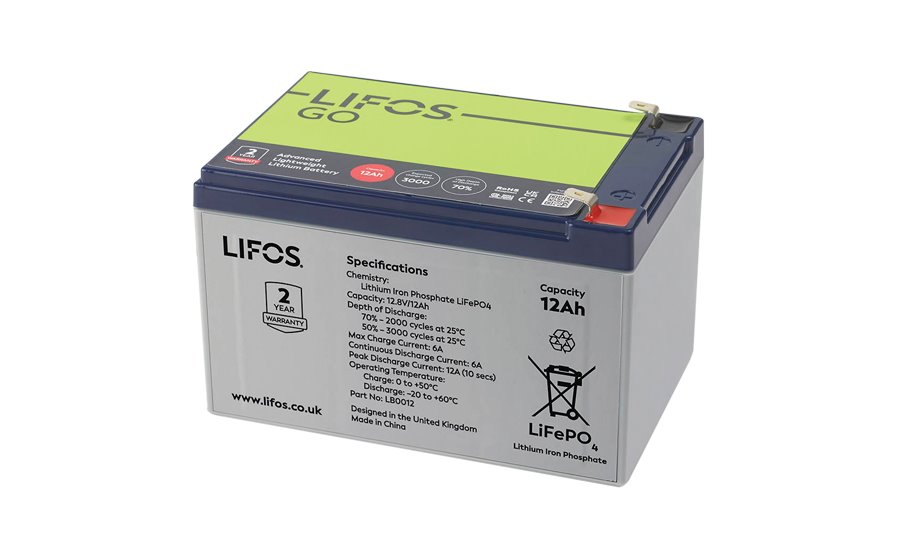

LIFOS GO 12Ah lithium iron phosphate battery

Features

Long Life

Lightweight & compact design

Expert support

Technical Specification

Electrical Specifications
Nominal Voltage 12.8v
Nominal Capacity 12Ah
Energy 153Wh
Resistance <80mΩ
Efficiency >90%
Self Discharge <3% per month
Maximum Batteries in series 2
Maximum Batteries in parallel 2

Mechanical Specifications
Dimensions inc Terminals 151 x 98.6 x 95mm
Weight 1.5Kg
Terminal Type F2
Case Material ABS + PC
IP Rating IP54
Cell Type (Chem) LifePO4

Charge Specifications
Recommended charge current 3A - 6A
Maximum Charge Current
Recommended Charge Voltage 14.4v
PCM Charge Voltage Cut OFF 3.9v+/- 0.025v/cell

Composition Information
Max Continuous Discharge Current <6A
Peak Discharge Current 12A (under 10 sec)
PCM Discharge Current Cut Off 30A +/- 5A
PCM High Temperature Cut Off 75ºC
Low Voltage Disconnect >11.6v
Reconnect Voltage >12.8

Temperature Specifications
Discharge Temperature -20~60ºC
Charge Temperature 0~50ºC
Storage Temperature -20~40ºC
PCM High Temperature Cut-Off 75ºC +/- 5ºC

Compliance Specifications
Certifications CE
ROHS
Shipping Classification MSDS
UN38.3
