Lifos Go 105Ah Lithium Iron Phosphate Battery

As our most popular battery, the Lifos Go 105 is perfect for a wide range of applications both leisure and industrial. Providing high power with minimal weight and super long lifespan has made this battery an all round favourite. Whether used to power electric marine motors or in large RVs, off grid properties, for on location audio visual equipment power, powering emergency “blue light” equipment or in commercial applications such as road signage, the Lifos Go 105 provides quick charging reliable power in all circumstances.

Buy Lifos Go batteries

Product Overview

The Lifos Go 105 provides an amazing 2750 charge / discharge cycles with a 90% depth of discharge giving a usable battery capacity of 99.75Ah. To replace this a 185Ah to 200Ah lead acid battery would be needed but instead of weighing in at nearly 60kgs, the Lifos Go 105 is a featherweight 11.9kgs.

Lifos Go 105 can be connected with four batteries in series or parallel if a power bank is needed and each battery's internal BMS ensures all the lithium cells are perfectly balanced to give outstanding and reliable performance.

Fitted with a Bluetooth app, you can keep abreast of the vital information at all times when connected to an Android or Apple smart device. Information such as current, voltage, power (w) and state of charge can be interrogated at any time and the smart operating system even send you a warning well before the battery gets to a low state of discharge giving plenty of time to get it recharged.

Lifos Go 105 is accredited by the NCC, the body representing the caravan and motorhome sector, as a verified leisure battery.

Lifos Go 105 is supplied with a five year warranty and ECE regulation R10 certification.

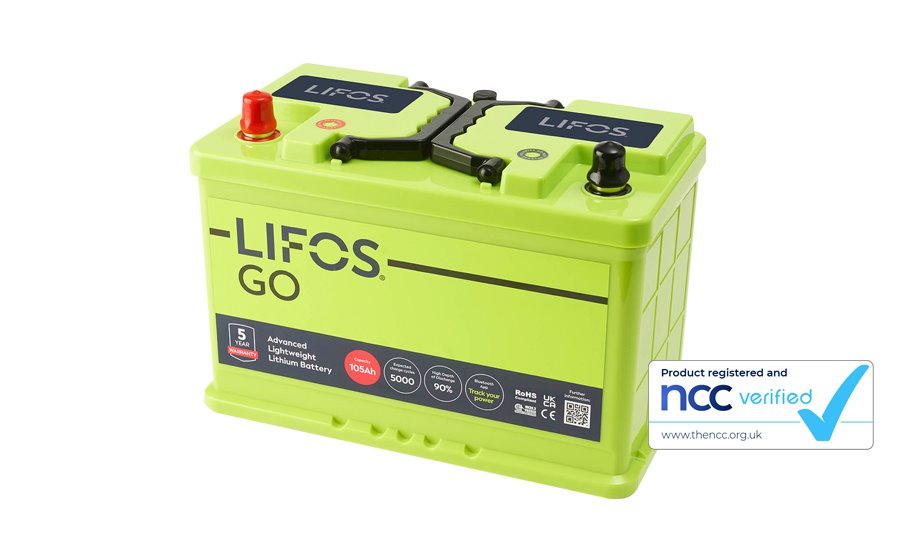

Lifos Go 105Ah lithium iron phosphate battery

Features

Long life

Lightweight & compact design

Fast charging

Free Bluetooth App

Built-in battery management system (BMS)

Removable connection posts

Expert support

5-Year product warranty

Technical Specification




Electrical Specifications
Nominal Voltage 12.8v
Nominal Capacity 105Ah
Energy 1344Wh
Resistance <15mΩ
Efficiency >90%
Self Discharge <3% per month
Maximum Batteries in series 4
Maximum Batteries in parallel 4



Mechanical Specifications
Dimensions inc Terminals 328 x 177 x 217.5mm
Weight 11.9Kg
Terminal Type Coper Pole M8
Terminal Torque  <10N.m
Case Material ABS UL94V-0+PC
IP Rating IP54
Cell Type (Chem) LiFePO4

Charge Specifications
Recommended charge current 20A - 50A
Maximum charge current 100A
 BMS charge current cut off  >100A
Recommended Charge Voltage 14.4v - 14.6v
BMS Charge Voltage Cut OFF 3.75v+/- 0.025v/cell

Composition Information
Max Continuous Discharge Current 120A (30 mins)
Peak Discharge Current 120A-150A (3 mins)
BMS Discharge Current Cut Off >150A (6s)
BMS High Temperature Cut Off 50ºC charge/60ºC Discharge
Low Voltage Disconnect >11.2v
Reconnect Voltage >12.8
 Short circuit protection  >700A

Temperature Specifications
Discharge Temperature -20~60ºC
Charge Temperature 0~50ºC
Storage Temperature -20~40ºC
PCM High Temperature Cut-Off 85ºC +/- 5ºC

Compliance Specifications
Certifications CE
ROHS, UN38.3
ECE regulation R10
Shipping Classification MSDS Class 9
UN3480
